| Your Needs | JWEI Solutions |
| Rapid order fulfillment to secure business opportunities | High-speed cutting + seamless file import for effortless complex contours |
| Streamlined order-to-delivery cycles reducing errors + data security protocols | Automatic sorting and labeling effectively reduce the chance of errors and double efficiency. |
| Highly customized processing | Proprietary encrypted controls enabling custom system integration |
| Multi-file compatibility enables processing of any customer file. | Advanced automation for material categorization |
| Embrace the digital era with visualized production management. | Supports multiple file formats with user-friendly and easy-to-use software. |
| Ultimate cost control to ensure a balance between profit and quality. | Local deployment with seamless integration into existing production management systems, and IoT cloud platform for data visualization. |
| Stable and reliable cutting equipment that eliminates losses caused by equipment-related issues. |
Single-operator multi-machine control with nesting/optimization slashing costs Backed by over 30 years of trusted reputation, with self-developed control systems ensuring safety and stability, and full lifecycle service. |
The Seamless 3-Stage Automation Workflow
-
Stage 01: Customized Material Stabilization & Loading The workflow initiates with a specialized material handling sequence designed for sensitive, dense, or sticky composite substrates (such as prepregs and woven fibers). Utilizing an industrial-grade, highly partitioned matrix vacuum bed combined with non-porous overlay films, the system firmly locks down the media. This custom setup completely eliminates structural distortion, fabric weave shifting, or material slippage under heavy tool engagement, maintaining absolute dimensional stability before any processing begins.
-

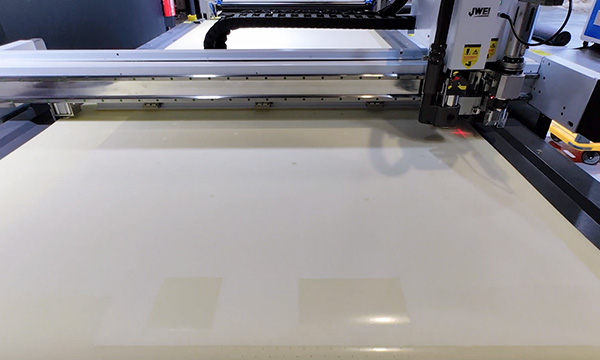

Stage 02: High-Speed Precision Digital Processing The core of the custom production cell relies on our heavy-duty advanced composite materials custom cutting solution architecture, built on an ultra-stable automatic flat bed die cutting machine framework. Driven directly by industrial structural engineering vectors, it entirely bypasses the high costs and lead times of rigid physical molds or manual stencil cutting. During execution, an integrated high-precision CCD vision system or overhead projection alignment tool dynamically maps fabric orientations, executing micro-level contour cutting, multi-layer nesting, and perfect geometric part extraction without fiber fraying or resin pulling.
-
Stage 03: Synchronized Part Extraction & Batch Sorting Upon completion of the high-velocity digital tool path, the conveyor bed advances the fully processed composite parts to the clean-room collection zone. For complex nesting layouts with dozens of variable parts, an integrated software tracking system or digital projection grid highlights components by kit ID or assembly layer, allowing operators to extract and bundle parts efficiently. Simultaneously, backing paper or matrix scraps are managed and cleared away, avoiding fiber cross-contamination and delivering a lean manufacturing pipeline ready for immediate curing or layup molding.
Technical Matrix: Modular Tooling & Integration
1. Modular Tooling & Substrate Compatibility
| Tool Module | Cutting Technology | Target Materials & Substrates |
| Pneumatic Oscillating Tool | High-amplitude, heavy-duty vertical blade oscillation for dense structures. | Carbon fiber prepreg, dry glass fiber fabrics, aramid composites (Kevlar), and multi-layer technical textiles. |
| Driven Rotary Knife Tool | High-speed motorized decagonal rotary blade for continuous strand shearing. | Woven carbon fibers, roving glass mats, nylon backing foils, and soft TPU/PVC protective films. |
| Heavy-Duty Routing Spindle | High-velocity rotary spindle milling for rigid cured structures. | Fully cured resin-matrix composite plates, rigid engineering plastics, and thick structural foam sandwich panels. |
2. Digital Pre-Press & Integration Architecture
| Integration Layer | Supported Protocol / Workflow | Operational Benefit |
| Seamless Industrial CAD Link | Direct vector rendering for .DXF, .PLT, .IGS, .STEP formats. | Bypasses file conversion overhead; accepts non-standard industrial layouts directly from standard engineering and nesting suites (e.g., AutoCAD, SolidWorks, specialized composite nesting software). |
| Custom Nesting & Yield Optimizer | Advanced algorithmic material allocation and real-time path calculation. | Maximizes expensive carbon/glass fiber utilization, reducing expensive raw material scrap matrices with zero manual intervention. |
