| Your Needs | JWEI Solutions |
| Customer places order | High-speed digital cutting, seamless file import, and hassle-free custom shape creation. |
| Capability to handle diverse materials, expanding your business potential | One machine, multiple functions — effortless processing of rigid sheets, flexible rolls, and irregular contour cutting. |
| Compatibility with multiple file formats, able to handle any customer file | Supports universal packaging file extensions with intuitive, user-friendly control software. |
| Advanced structural design software with extensive template library | Seamlessly integrates with ESKO ArtiosCAD—a world-class packaging structure design software offering thousands of parametric box templates. |
| Ultimate cost control to ensure a balance between profit and quality | A single operator can control multiple devices simultaneously, with algorithmic smart nesting features achieving $15\%$ material cost savings. |
| Stable and reliable cutting equipment to eliminate losses caused by machinery | Over 30 years of trusted manufacturing reputation, self-developed CNC control system for safety and stability, and full lifecycle service delivering $\pm0.1\text{mm}$ precision. |
The Seamless 3-Stage Automation Workflow
-
Stage 01: High-Volume Automated Sheet Feeding The workflow initiates with an intelligent sheet-feeding matrix tailored for packaging substrates. Utilizing heavy-duty industrial pneumatic suction cups paired with an advanced air-blowing separation device, the system effortlessly lifts and separates individual folding cartons, heavy greyboards, or corrugated cardboard layers. This configuration reliably breaks the static vacuum layer between media sheets, ensuring continuous, single-sheet feeding into the cutting area without double-feeding risks.
-

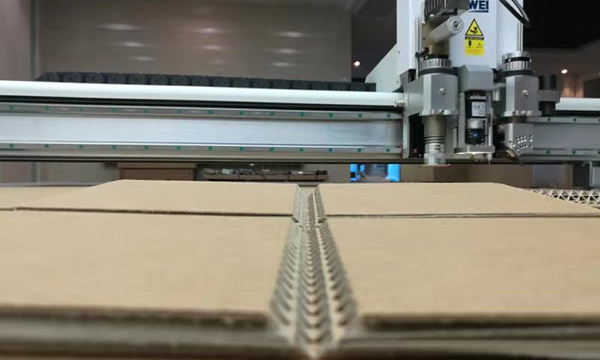

Stage 02: High-Speed Digital Processing The heart of the packaging line relies on our heavy-duty digital packaging cutting & creasing solution architecture, built on a robust flat bed die cutting machine framework. Driven directly by packaging CAD structural files (.CF2/.DXF), it entirely eliminates the need for expensive physical wood-and-steel dies. For printed corrugated boxes and cosmetics packaging blanks, an integrated high-precision CCD vision registration system automatically captures print marks on the fly, instantly compensating for any print distortion to deliver flawless contour cutting and perfect creasing alignment.
-
Stage 03: Synchronized Blank Extraction & Stacking Upon completion of the digital cutting and creasing tool paths, the synchronized conveyor matrix advances the processed layout to the downstream extraction zone. An automated collection gantry systematically lifts and neatly stacks the finished packaging blanks onto the collection pallet, ready for immediate folding and gluing. Simultaneously, the scrap waste matrix is managed and cleared efficiently, minimizing manual post-press sorting and maximizing factory throughput.
Technical Matrix: Modular Tooling & Integration
1. Modular Tooling & Substrate Compatibility
| Tool Module | Cutting Technology | Target Materials & Substrates |
| High-Frequency Oscillating Tool | Rapid vertical blade oscillation for clean structural cutting. | Heavy-duty corrugated cardboard, double-wall corrugated boards, and honeycomb panels. |
| Precision Creasing Wheels | Multi-geometry interchangeable wheels for deep, tear-free creases. | Solid bleached sulfate (SBS) boards, folding boxboards (FBB), and high-density greyboards. |
| Heavy-Duty Routing Spindle | High-speed rotary spindle milling for rigid display structures. | Thick packaging foam inserts, rigid plastics, and heavy industrial presentation boards. |
2. Digital Pre-Press & Integration Architecture
|
