| Your Needs | JWEI Solutions |
| Reduce unnecessary process steps for boosting productivity | High-speed precision cutting accelerates the entire process with unmatched speed and accuracy. Our cutting systems handle any packaging material—corrugated,honeycome board —delivering rapid throughput for high-volume tasks while dramatically boosting operational efficiency. |
| The processing capacity for diverse materials needs to meet the demands of different applications and customers,So as to expand the possibilities of its own business and increase the market capacity. | A single machine is all it takes to handle batch processing of various materials, enabling fast turnaround for short-run orders, rapid delivery, and quick completion of high value-added products. |
| It needs to have strong compatibility and be compatible with any CAD file available on the market | Supports multiple file formats with easy and user-friendly software |
| It needs to have strong compatibility and be compatible with any CAD file available on the market. | With ESKO packaging structural design software (ArtiosCAD), designing is faster and more effortless. The JWPS box design software offers over a thousand box templates, allowing users to create various box types quickly — even without a structural designer. |
| Reduce labor costs, enhance work efficiency, and ensure a balance between profit and quality | Reduces manpower requirements — a single operator can manage multiple machines simultaneously. With integrated layout and imposition functions, it significantly boosts efficiency while delivering notable cost optimization. |
| The equipment is highly stable and reliable, and will not delay production due to performance issues | Over 30 years of trusted reputation, self-developed control for safety and stability, and full lifecycle service. |

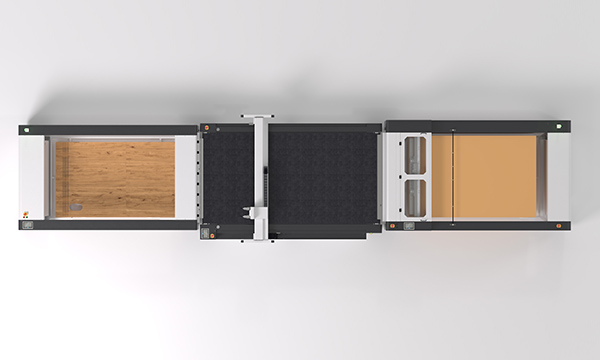

The Seamless 3-Stage Automation Workflow
-
Stage 01: Precision Automated Loading & Sheet Separation The workflow initiates with an intelligent sheet-feeding matrix tailored for packaging substrates. Utilizing high-volume pneumatic suction cups paired with an advanced air-blowing separation device, the system reliably lifts and separates individual folding cartons, heavy greyboards, or corrugated cardboard layers. This configuration effectively breaks the static vacuum layer between media sheets, ensuring continuous, single-sheet feeding into the processing zone without double-feeding risks.
-
Stage 02: High-Speed Digital Processing The heart of the packaging line relies on our heavy-duty automated packaging cutting & creasing system architecture, built on a robust automatic flat bed die cutting machine framework. Driven directly by packaging CAD structural files (.CF2/.DXF), it entirely eliminates the need for expensive physical wood-and-steel dies and lengthy setup times. During execution, an integrated high-precision CCD vision registration system automatically scans printed marks on the fly, instantly compensating for any media stretch or printing distortion to deliver flawless contour cutting and perfect creasing alignment.
-
Stage 03: Synchronized Blank Extraction & Stacking Upon completion of the precise digital cutting and creasing tool paths, the synchronized heavy-duty conveyor bed advances the processed layout forward to the extraction zone. An automated collection gantry systematically picks up the finished packaging blanks and neatly stacks them onto the unloading pallet, ready for immediate folding and gluing. Concurrently, the scrap waste matrix is managed and guided away efficiently, minimizing manual post-press sorting and creating a lean manufacturing pipeline.
Technical Matrix: Modular Tooling & Integration
1. Modular Tooling & Substrate Compatibility
| Tool Module | Cutting Technology | Target Materials & Substrates |
| High-Frequency Oscillating Tool | Rapid vertical blade oscillation for clean structural cutting. | Heavy-duty corrugated cardboard, double-wall corrugated boards, and honeycomb panels. |
| Precision Creasing Wheels | Multi-geometry interchangeable wheels for deep, tear-free creases. | Solid bleached sulfate (SBS) boards, folding boxboards (FBB), and high-density greyboards. |
| Heavy-Duty Routing Spindle | High-speed rotary spindle milling for rigid display structures. | Thick packaging foam inserts, rigid plastics, and heavy industrial presentation boards. |
2. Digital Pre-Press & Integration Architecture
|
