Integrated Sheet and Roll Cutting Solution | JWEI Digital CNC Cutting System

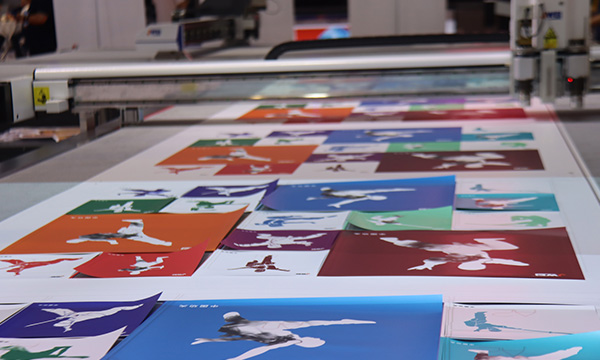

Maximize your advertising and signage production with JWEI's integrated sheet and roll cutting solution. Powered by an advanced flatbed CNC cutter and smart CNC cutting table, this digital cutting machine supports both rigid sheets and flexible rolls in a single workflow. As a high-efficiency digital dieless cutter, it eliminates traditional dies through automated QR code tracking and precision multi-tool configurations. Whether you need a high-speed digital cutting plotter for detailed graphics or a robust cnc cutting machine for volume finishing, JWEI delivers the ultimate digital flatbed cutting technology to streamline your workshop and cut operational costs.
| Your Needs | JWEI Solutions |
| Rapid delivery to ensure no orders are missed | High-speed cutting, easy file import, hassle-free custom shapes |
| Capability to handle diverse materials, expanding your business potential | One machine, multiple functions — effortless handling of sheet, roll, and irregular cutting |
| Compatibility with multiple file formats, able to handle any customer file | Supports multiple file formats with easy and user-friendly software |
| Embrace the digital era with visualized production management | Seamless MES/IoT integration with cloud-based data visualization |
| Embrace the digital era with visualized production management | A single operator can control multiple devices at once, with integrated layout and nesting features, achieving notable cost savings. |
| Stable and reliable cutting equipment to eliminate losses caused by machinery | Over 30 years of trusted reputation, self-developed control for safety and stability, and full lifecycle service. |
The Seamless 3-Stage Cross-Medium Automation Workflow
-
Stage 01: Adaptive Automated Material Feeding Engineered to handle dual material streams flawlessly on a single platform. For rigid sheet media (such as heavy greyboards or corrugated plastic panels), the system utilizes an intelligent pneumatic suction matrix to ensure single-sheet separation and precise feeding. For flexible roll materials (such as industrial textiles, soft signage, or vinyl), a synchronized, tension-controlled auto-feeding mechanism advances the media smoothly onto the bed without stretching or wrinkling.
-
Stage 02: High-Speed Digital Processing The heart of the setup relies on our heavy-duty integrated sheet and roll cutting solution architecture. Driven directly by digital CAD vector workflows, it completely replaces physical dies and lengthy setup times. When processing flexible roll media or printed rigid display boards, an integrated high-precision CCD vision registration system instantly captures registration marks, dynamically compensating for material distortion to execute micro-level contour cutting accuracy.
-
Stage 03: Synchronized Unloading & Extraction Upon completion of the digital tool path, the heavy-duty conveyor matrix advances the processed material into the collection zone. An automated extraction gantry systematically lifts and stacks the finished die-cut pieces, while the waste matrix is guided away efficiently. This minimizes manual post-press sorting and material damage, ensuring a highly continuous and productive manufacturing loop for multi-application factories.
Technical Matrix: Modular Tooling & Integration
1. Modular Tooling & Substrate Compatibility
| Tool Module | Cutting Technology | Target Materials & Substrates |
| Heavy-Duty Routing Spindle | High-speed rotary spindle milling for rigid plates. | Rigid acrylics, aluminum composite panels (ACP), dibond, and thick industrial plastics. |
| High-Frequency Oscillating Tool | Rapid vertical blade oscillation for porous/dense media. | Thick corrugated cardboard, honeycomb boards, greyboards, and industrial foam layers. |
| Rotary & Drag Knives | High-speed linear drag and motorized rotary tracking. | Soft signage, polyester banner fabrics, mesh films, and adhesive vinyl sheets. |
2. Digital Pre-Press & Integration Architecture
| Integration Layer | Supported Protocol / Workflow | Operational Benefit |
| Seamless CAD Link | Direct vector rendering for .DXF, .PDF, .AI, .CF2 formats. | Bypasses file conversion overhead; accepts pre-press files directly from standard design suites. |
| Barcode Automation | Real-time optical scanning at the material loading edge. | Automatically retrieves cut profiles and nesting configurations from servers with zero manual intervention. |
