SG2132

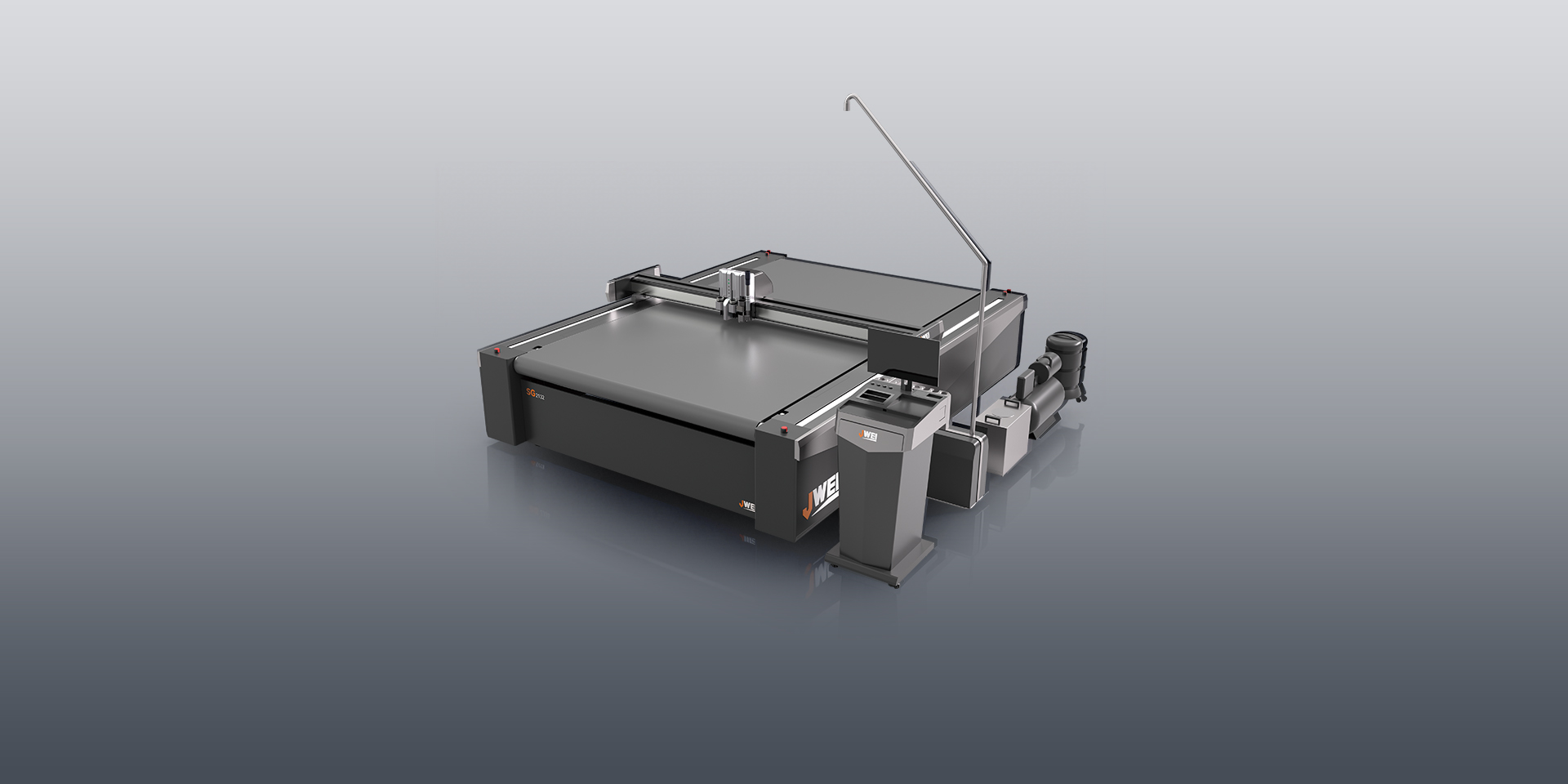

Large-format, High-efficiency，CNC oscillating knife cutter
Watch Video
JWEI Intelligent Digital Cutters & CNC Cutting Solutions

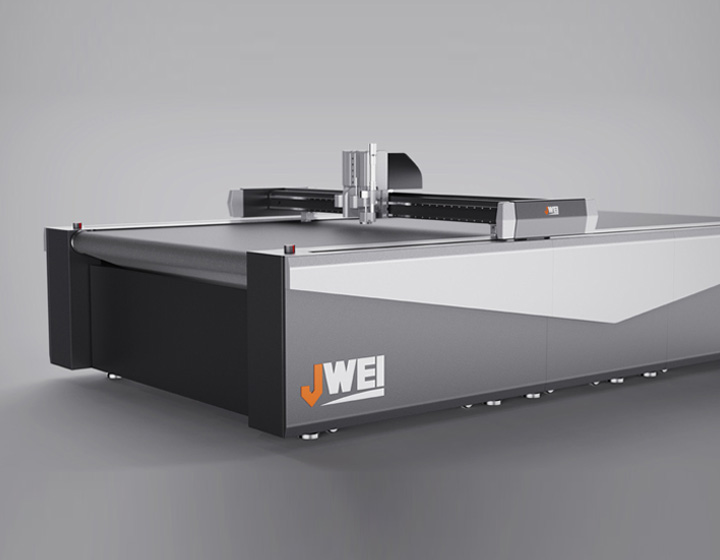

The SG series Digital CNC Cutting Plotter is specifically designed for the advertising industry, suitable for contour cutting and graphic processing of wide range of materials. This machine integrates multiple functions – including cutting, creasing, plotting, and milling - into one system, with quick and easy tool changes that support plug and play operation.
Optional features include an ATC (Automatic Tool Change) system, as well as configurations with either three tool heads or dual-heads allowing flexible adaptation to different production requirements. The SG Series efficiently processes various advertising materials such as ABS board, PVC board, foamboard, aluminum composite panels, backlit panels, self-adhesive vinyl, PVC foam boards (Sintra) , KT boards, acrylic, magnetic sheets and sticker.
The device supports large-format cutting, easily handling oversized materials. With a cutting speed of up to 2 m/s, it ensures high precision while significantly improving production efficiency. User-friendly operation and strong practicality, make it an ideal solution for advertising production environments.
Automatic Tool Change(RTC)
Supports continuous operation across multiple processes such as routing, chamfering, and polishing without requiring manual tool changes or downtime, significantly improving production efficiency. The system integrates professional routing capabilities, enabling high‑efficiency processing of hard materials like acrylic, PVC board, and MDF. It achieves high‑precision, multi‑process integration in a single setup.
Automatic Tool Change(ATC)
The SG series Digital CNC Cutting Plotter not only supports automatic cutting head replacement but also allows flexible switching among various specialized tools. Semi‑cutting, full‑cutting, grooving, and other processes can be completed seamlessly, easily meeting diverse processing needs for materials such as vehicle graphics, adhesive vinyl, and KT board. This enables efficient and uninterrupted automated production.
High‑Speed Cutting
Maintains stable precision even at extreme speeds up to 2 m/s, greatly shortening production cycles and achieving a dual breakthrough in both efficiency and accuracy.
Precision and Stability

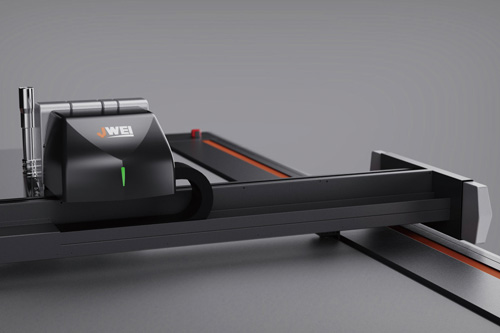

Equipped with a gear‑and‑rack drive system, it delivers excellent positioning accuracy and dynamic response performance. The machine ensures long‑term stable and reliable operation, guaranteeing durability and processing consistency even under high‑speed and heavy‑load conditions.
Multiple Size Options
Available in a range of large‑format standard sizes including 2100mm × 3200mm, 3200mm × 1600mm, and 3200mm × 3200mm, precisely tailored to various material and application requirements. Customized dimensions are also supported to flexibly match your production layout and project demands.
High Vacuum Hold‑Down
Features an optimized air‑flow design that significantly enhances vacuum suction, securely holding even small workpieces in place.
Application Scenarios
The SG Digital CNC Cutting Plotter is suitable for processing a wide variety of materials in the advertising industry, such as ABS board, PVC board, aluminum composite panel, light‑diffusing panel, self‑adhesive vinyl, foam PVC board, KT board, acrylic, magnetic sheet, adhesive vinyl, and more.
20mm-Acrylic-board
The Chair made of Honeycomb board
The Guitar made of PVC foam board
Aluminum Composite Panel
KT board
Recommended Configuration
Electric Oscillating Tool
Equipped with a high-frequency Maxon motor, reaching speeds up to 18,000 RPM, and featuring specially made tungsten steel hardened blades, it easily handles cutting various harder and thicker materials (such as corrugated cardboard, honeycomb cardboard, KT board, and foam board) with fast speed and smooth, neat edges.
Universal Cutting Tool
Capable of handling materials with a thickness of up to 5mm. Compared to the oscillating tool, it cuts at a faster speed.
Kiss-cut tool
Specifically designed for kiss-cutting of materials such as self-adhesive vinyl and printed advertising back adhesive films. Paired with a high-precision camera positioning system, it enables effortless cutting of even the most complex contour shapes.
Ethernet Transmission Port
Data transmission is flexible and stable, with enhanced automation scalability; it supports remote upgrades and maintenance, as well as machine control and file access within a local area network (LAN).
Safety Protection
The safety collision design is simple and elegant, featuring an internal infrared light grid device that is highly responsive, ensuring the personal safety of operators and the secure operation of the machine.
Aerospace Honeycomb Aluminum Plate + Felt Tabletop
Made with aerospace-grade aluminum honeycomb panels: strong, weather-resistant, highly flat, and resistant to deformation even under heavy loads. The internal honeycomb structure allows smooth airflow. Optional zoned vacuum suction provides powerful airflow and strong suction force.
Independent Control Platform (Excluding Computer)
This platform integrates an emergency stop button with a touch screen human-machine interface, which is user-friendly and easy to operate, facilitating the quick setup of various cutting parameters. It also provides space for PC installation.
Camera Positioning System
For printed materials, the camera positioning system enables fast and accurate cutting alignment. With the integrated QR code-based job classification module, it supports automated image adjustment and production of different batches in small quantities.
Optional Tools
Automatic Tool Changer
Part description
V-CUT Tool For Grey Board
Part description
V-CUT Tool For Multi-angle
Part description
V-CUT Tool For Photo Frame
Part description
V-CUT Tool For Photo Frame
Part description
Electric Foam Cutting Tool
Part description
Explosion-proof Pressure Wheel
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | SG2132 | SG3216 | SG3232 | |||
| Tool head | 2 Tool heads | 3 Tool heads | 2 Tool heads | 3 Tool heads | 2 Tool heads | 3 Tool heads |
| Multi-functional Tool Head | Multi-tool fixing holes, quick insert tool fixing, easy-to-replace cutting tools, plug-and-play, set cutting, creasing, drawing, router and otherfunctions in one, optional ATC module. | |||||
| Tools | Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools, etc. | |||||
| Fastest speed | 2000mm/s * | |||||
| Max Cutting Thickness | 50mm * | |||||
| Repeat Precision | ＜0.05mm * | |||||
| Cutting Materials | ABS board, PVC board, space board, aluminium-plastic board, lamp sheet, back glue, PVC foam board, KT board, acrylic, magnetic sticker, self-adhesive, etc. | |||||
| Material Fixation Mode | Vacuum absorption | |||||
| Software resolution | 0.025、0.01、0.1 optional | |||||
| Transmission Mode | Ethernet port | |||||
| Drive System | Bus controller, advanced servo system, imported linear guide rail, lead screws, grinding level 0 backlash helical teeth | |||||
| Instruction system | HP-GL compatible format | |||||
| Total Power | 12.2kVA | 14.4kVA | 12.2kVA | 14.4kVA | 27kVA | 27kVA |
| Rated Voltage | 380V±10% | |||||
| Machine Weight | 1720kG | 1720kG | 1670kG | 1670kG | 1670kG | 1670kG |
| Effective Cutting Size (WxL) | 2100mm×3200mm | 200mm×1600mm | 3200mm×3200mm | |||
| Machine Size (WxLxH) | 3160mm×4108mm×1415mm | 4260mm×2480mm×1415mm | 260mm×4080mm×1415mm | |||
Note: * will be determined based on the specific materials in the actual application scenario.
JWEI SG2132 Wide-Format CNC Oscillating Knife Cutter for Industrial Materials

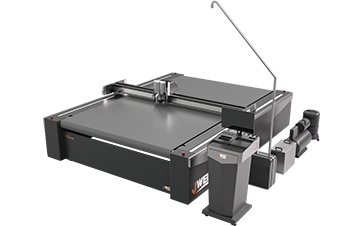

JWEI SG2132, a heavy-duty CNC oscillating knife cutter featuring an expansive $2.1\text{m} \times 3.2\text{m}$ wide-format bed. Engineered for high-speed, flame-free industrial manufacturing, this advanced cutting system replaces traditional mechanical dies and thermal laser processing with precise, die-less knife cutting directly from CAD files. Whether processing oversized corrugated packaging, rigid plastics, or flexible technical textiles, the SG2132 CNC oscillating knife cutter utilizes rapid high-frequency tool vibrations to deliver immaculate, scorch-free edge quality while maximizing material utilization across a continuous, 24/7 profitable workflow.
Frequently Asked Questions (FAQ)
Q: What makes the JWEI SG2132 a preferred CNC oscillating knife cutter for wide-format materials?
A: The JWEI SG2132 CNC oscillating knife cutter offers a specialized $2100\text{mm} \times 3200\text{mm}$ working area, specifically designed to process extra-wide substrates and oversized graphics without sectioning. By utilizing rapid, high-frequency knife vibrations driven by digital CAD files, it effortlessly slices through thick or dense media with zero tooling costs, zero smoke, and zero burnt edges.
Q: What tooling versatility does this CNC oscillating knife cutter offer for diverse industries?
A: Beyond its core CNC oscillating knife cutter capabilities, the SG2132 features a modular tool head that allows users to rapidly swap or combine tools. It can simultaneously equip electric or pneumatic oscillating knives, creasing wheels, V-cut tools, and drag knives, making it perfectly adaptable for packaging, advertising displays, automotive upholstery, and advanced composites.
Q: How does the SG2132 ensure precise edge quality on flexible and multi-layer substrates?
A: The system pairs a high-torque oscillating motor with a powerful, multi-zone vacuum suction bed. The vacuum concentrates immense hold-down force directly beneath the substrate to prevent material shifting, while the vertical stroke of the CNC oscillating knife cutter neatly shears through complex shapes, ensuring flawless dimensional accuracy and perfectly square, clean edges on every single batch.
