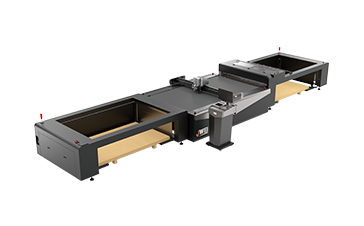

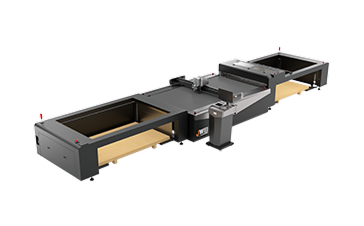

SG1625
Fully automatic loading unloading system, Fully automatic tool changing
Watch Video
The SG1625 flatbed cutter (sheet feeding, cutting, and stacking system) is an intelligent sheet processing solution that can be used with the AI Cutting Assistant. With just a simple voice command, the machine automatically completes feeding, positioning, cutting, and stacking. The system also features a rear-scan automatic feeding function, enabling one-step cutting of materials such as PVC foam board and corrugated board with printed graphics. In addition, the SG1625 flatbed cutter supports high-speed acrylic cutting and comes with an automatic tool changer, allowing routing, polishing, and chamfering to be completed in a single process. Overall, the SG1625 flatbed cutter simplifies manual intervention through intelligent operation, significantly improving production efficiency and cutting precision. It is ideal for applications such as advertising panels, sign making, and decorative material processing.
AI-Powered Automation
With the AI Cutting Assistant, a single voice command triggers the machine to automatically complete feeding, positioning, cutting, and stacking — significantly simplifying operation and reducing manual intervention.
Rear-Scan & One-Step Cutting
The system features a rear-scan automatic feeding function, enabling one-step cutting of pre-printed materials such as KT board and PVC foam board. This ensures precise positioning and higher efficiency.
Automatic Tool Change and Automatic Bit Change
The SG1625 flatbed cutter supports high-speed cutting of rigid materials such as acrylic, and comes with an automatic tool changer that allows routing, polishing, and chamfering to be completed in a single process — no manual tool change required. It also features an automatic tool change system, making it easy to handle different materials and processes with great flexibility.
Application Scenarios
The SG1625 flatbed cutter is widely used for processing products such as display racks, custom standing signs, flags, banners, roll-up banners, car wraps, magnetic sheets, and advertising letter signs. It can quickly and efficiently cut materials including PVC foam board, acrylic, and car wrap film. Whether in advertising production, exhibition displays, or sign making, the SG1625 flatbed cutter leverages its integrated feeding, cutting, and stacking design to deliver precise and high-speed processing of various sheet materials, helping users improve production efficiency and meet diverse order requirements.
20mm-Acrylic-board
The Chair made of Honeycomb board
The Guitar made of PVC foam board
Aluminum Composite Panel
KT board
Recommended Configuration
Motion Control System
High-end M7 series bus control system with real-time communication and zero signal loss, and zero error in software resolution. The cutting head achieves higher motion efficiency with precise and smooth curve movement.
Electric Oscillating Tool
Equipped with a high-frequency Maxon motor, reaching speeds up to 18,000 RPM, and featuring specially made tungsten steel hardened blades, it easily handles cutting various harder and thicker materials (such as corrugated cardboard, honeycomb cardboard, KT board, and foam board) with fast speed and smooth, neat edges.
Universal Cutting Tool
Capable of handling materials with a thickness of up to 5mm. Compared to the oscillating tool, it cuts at a faster speed.
Plotter Pens
Includes one gel pen and one oil-based pen, which can be used for drawing on paper and cardstock materials, as well as for product precision testing and calibration.
Ethernet Transmission Port
Data transmission is flexible and stable, with enhanced automation scalability; it supports remote upgrades and maintenance, as well as machine control and file access within a local area network (LAN).
Safety Protection
The safety collision design is simple and elegant, featuring an internal infrared light grid device that is highly responsive, ensuring the personal safety of operators and the secure operation of the machine.
Aerospace Honeycomb Aluminum Plate + Felt Tabletop
Made with aerospace-grade aluminum honeycomb panels: strong, weather-resistant, highly flat, and resistant to deformation even under heavy loads. The internal honeycomb structure allows smooth airflow. Optional zoned vacuum suction provides powerful airflow and strong suction force.
Independent Control Platform (Excluding Computer)
This platform integrates an emergency stop button with a touch screen human-machine interface, which is user-friendly and easy to operate, facilitating the quick setup of various cutting parameters. It also provides space for PC installation.
Camera Positioning System
For printed materials, the camera positioning system enables fast and accurate cutting alignment. With the integrated QR code-based job classification module, it supports automated image adjustment and production of different batches in small quantities
Optional Tools
Automatic Tool Changer
Part description
V-CUT Tool For Grey Board
Part description
V-CUT Tool For Photo Frame
Part description
V-CUT Tool For Multi-angle
Part description
V-CUT Tool For Photo Frame
Part description
Electric Foam Cutting Tool
Part description
Oscillating cutting tool with 5mm
Part description
Router
Part description
Technical Parameters
JWEI reserves the right of final interpretation of the following parameters, subject to change without prior notice.
| Model | SG1625 Loading-cutting-unloading |
| Multi-functional machine head | Multi-functional Tool Head Multi-tool fixing holes, quick insert tool fixing, easy-to-replace cutting tools, plug-and-play, set cutting, creasing,drawing, router andother functions in one, optional ATC module. |
| Tools | Electric oscillating tool, drag knife, rotary tool, router tool module, plotting tools, etc. |
| Fastest speed | 2000mm/s* |
| Max cutting thickness | 50mm* |
| Max loading height (include Pallet) | 650mm |
| Max single sheet thickness | 4mm |
| Max single sheet feed weight | 1kg |
| Max loading-unloading size（W*L） | 1600mm×2500mm |
| Min loading-unloading size（W*L） | 297mm×420mm |
| Cutting materials | ABS board, PVC board, space board, aluminium-plastic board, lamp sheet, back glue, PVC foam board, KT board, acrylic, magnetic sticker, self-adhesive, etc. |
| Material Fixation Mode | Vacuum absorption |
| Transmission Mode | Ethernet port |
| Drive System | Bus controller, advanced servo system, imported linear guide rail, lead screws, grinding level 0 backlash helical teeth |
| Rated Capacity | 21.3kVA |
| Rated Voltage | 380V±10% |
| Machine Weight | 4240kG |
| Effective Cutting Size （W*L） | 1600mm×2500mm |
| Machine Size （W*L*H） | 2570mm×11150mm×1415mm （Loading area: 2160mm×3820mm×1200mm, Cutting area: 2570mm×3380mm×1415mm, Unloading: 2100mm×3950mm×1050mm） |
Revolutionize your short-run packaging production and sample-making workflow with the JWEI SG1625 Flatbed Digital Cutting System. Engineered specifically for the fast-paced packaging, printing, and custom box manufacturing industries, the SG1625 eliminates the need for expensive traditional cutting dies. Powered by a high-speed EtherCAT motion control system and an intelligent multi-tool configuration, it delivers unmatched precision, flexibility, and 24/7 industrial-grade reliability.
Why International Distributors & Box Plants Choose the JWEI SG1625:
-
Triple-Head System & One-Pass Forming: Equipped with a smart plug-in, triple-head architecture that allows simultaneous mounting of oscillating knives, creasing wheels, and multi-angle V-cut tools. Achieve high-precision cutting, creasing, and grooving in a single automated process—perfect for complex rigid boxes and corrugated cartons.
-
Next-Gen ATC (Automatic Tool Changer): Streamline operations with a fully automated tool-changing module. The machine effortlessly switches between different blades and tools based on digital files, maximizing uptime, eliminating operator errors, and bypassing manual depth adjustments.
-
Ultra-Fast EtherCAT Motion Control: Driven by JWEI’s self-developed embedded M7 EtherCAT bus controller, the system boasts a blazing-fast motion cycle of just 0.0001 seconds. Reach cutting speeds of up to 2,000 mm/s with a repeat precision of less than 0.05 mm, allowing for flawless circular cuts down to 1 mm in diameter.
-
Intelligent CCD Camera & QR-Code Workflow: Perfect for printed packaging. The integrated high-resolution camera positioning system automatically aligns cutting paths with print registration marks. Paired with a QR-code job classification module, the machine automatically retrieves and processes different small-batch jobs seamlessly.
-
Heavy-Duty Aerospace Construction: The tabletop is crafted from premium aerospace-grade aluminum honeycomb panels, paired with a robust felt surface. It offers extreme flatness, resistance to deformation under heavy loads, and an advanced 6-zone independent vacuum matrix that enhances suction power by more than three times.
Note: * will be determined based on the specific materials in the actual application scenario.
